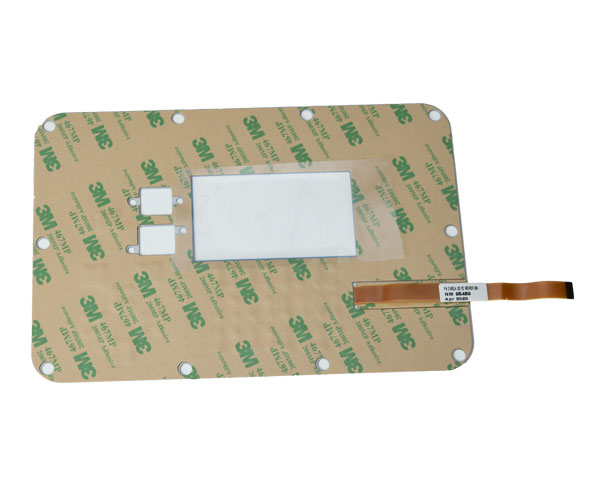

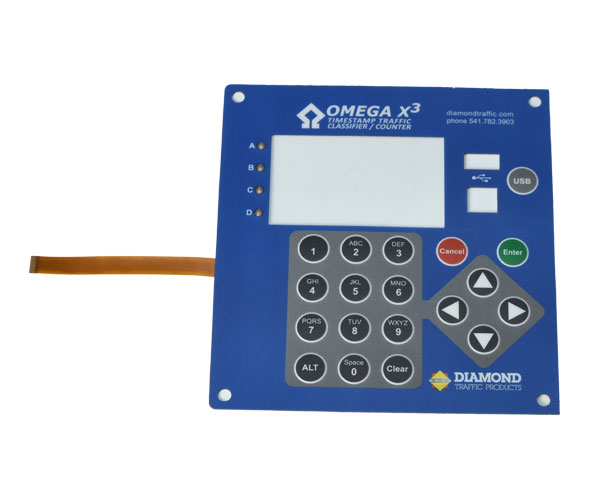

FPC circuit - film switch and PCB using the same patch welding process, mainly to solve the ordinary film switch LED easy short circuit open circuit problem Widely used in high - end instruments and products with high stability requirements

Membrane switch is an operating system that integrates key functions, indicators and dashboards. It consists of four parts: panel, upper circuit, isolation layer and lower circuit. When the film switch is pressed, the contacts of the upper circuit deform downward and make contact with the board of the lower circuit. After the finger is released, the upper circuit contact springs back, the circuit is disconnected, and the circuit triggers the signal. Membrane switch structure, beautiful appearance, good air tightness. It has the characteristics of long service life. Widely used in electronic communication, electronic measuring instruments, industrial control, automotive industry, intelligent toys, household appliances and other fields.

The plastic substrate of 0.25mm and below is called film and is mainly used as the panel layer of film switch. Various indicative patterns and words are printed on the back, indicating the operation area corresponding to the open key position. Thickness selection should be based on the size of the panel and the button, thick material, tactile increase, slow response; Material is too thin, feel poor, rebound is not obvious. Thickness above 0.25mm is called sheet and is not suitable for 3d key forming. It can be used as an indicator panel for the keyless operation area and as a lining board for the film switch to improve its hardness.

    Dongguan Keda Film Technology Co., Ltd. is a professional manufacturer of film switches. Its business scope covers film switches, film panels, software circuits, silicone keys, rubber, nameplate labels, LED backlight film switches, EL cold light film backlight film switches, LGF light guide film switches, optical fiber film switches and capacitive film switches. In addition to membrane switches, the company also provides supporting products, such as silicone keys, nameplate labels, pcba, FPC, IML / IMD electronic products R & D, design and assembly of high-tech enterprises. The company is composed of engineers, technicians and managers with more than 10 years of experience.

　　The company covers an area of 1200 square meters, complete hardware supporting facilities and modern working environment and conditions. The company has complete system and departments, and has a set of mature and effective management system and strict and scientific quality assurance system for project design, quality and service. The engineering department, the material control department, the quality inspection department, the printing department, the assembly department, the stamping and forming department, the comprehensive service department and other departments have introduced a large number of automatic printing equipment in the production process, effectively ensuring the progress and quality requirements of the products. Product quality is guaranteed, which is not only a commitment, but also represents the great confidence of reachable film technicians in product quality and unlimited sincerity to customers.

We use wisdom, technology, skills and sincerity to create high-quality membrane switches, build a small and Seiko factory, and implement the customer's requirements one by one.

　　"Reputation first, quality first, service first" is the purpose we will always follow. Respecting tradition, advocating fashion, scientific and technological innovation and aiming to be ahead are our enduring ideas.

　Whether you are a new customer or an old friend of our company, all colleagues of reachable Film Technology Co., Ltd. are honored to have the opportunity to provide you with high-quality and comprehensive service. We will make more unremitting efforts to provide better services and repay our customers.
